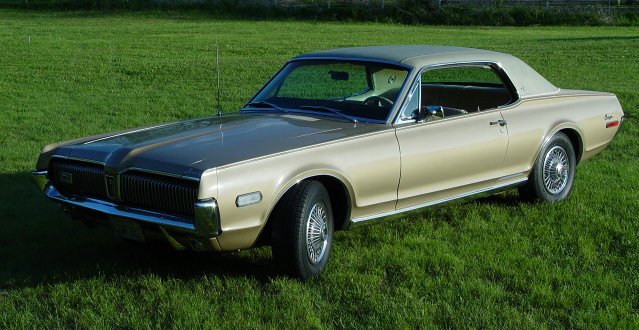

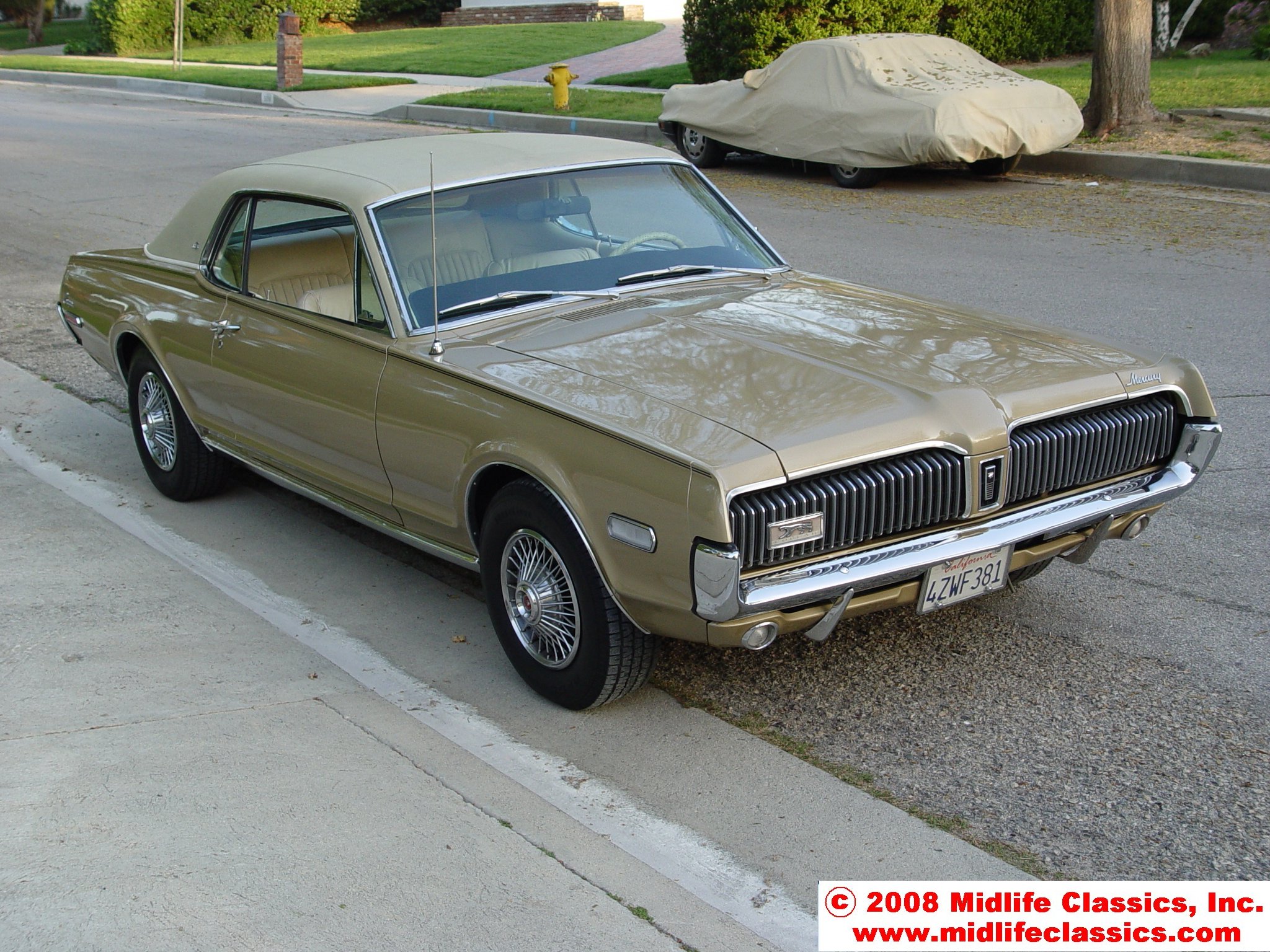

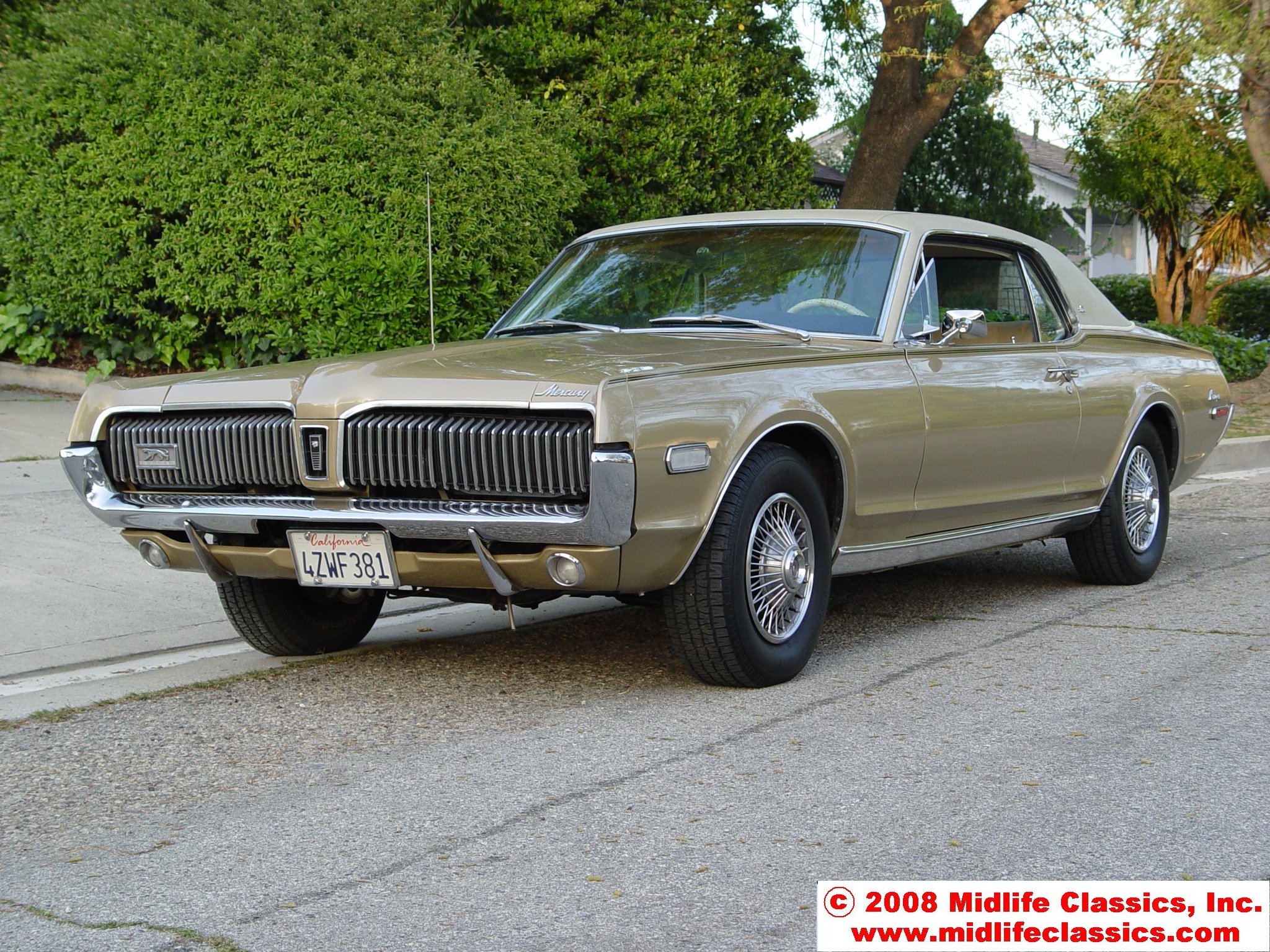

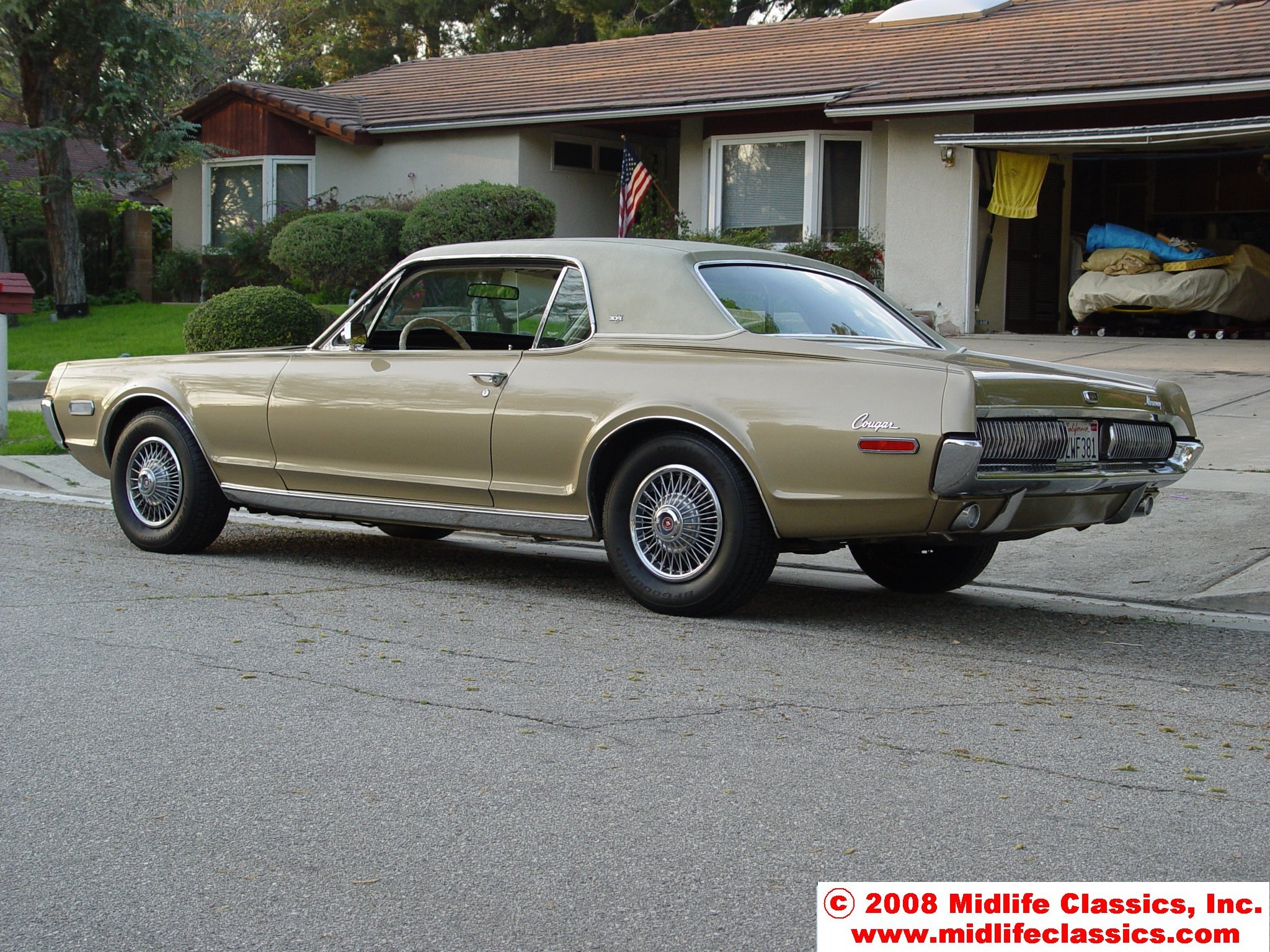

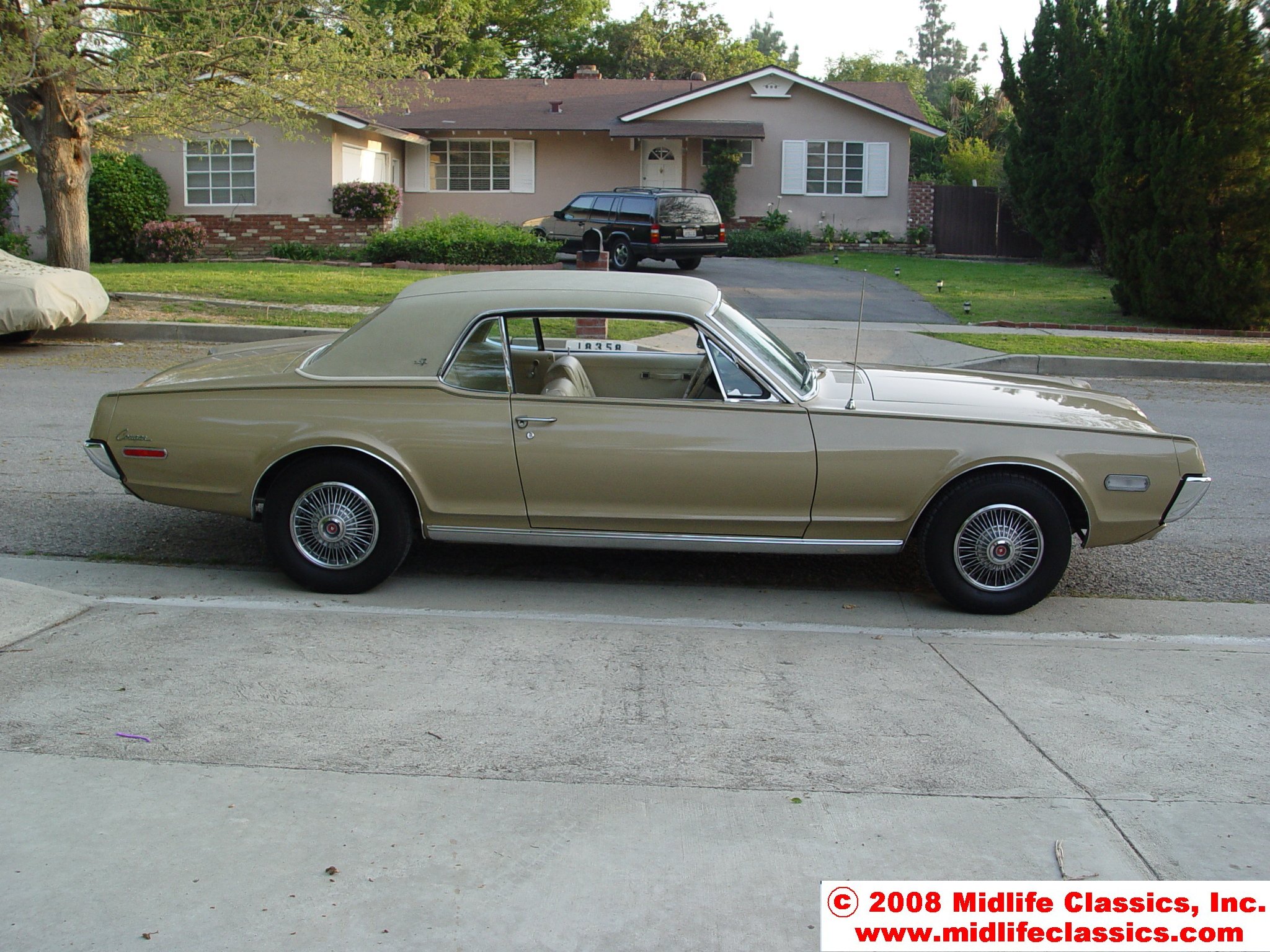

1968 Cougar
XR-7
  • License: 4ZWF381









Click on an image for a larger view

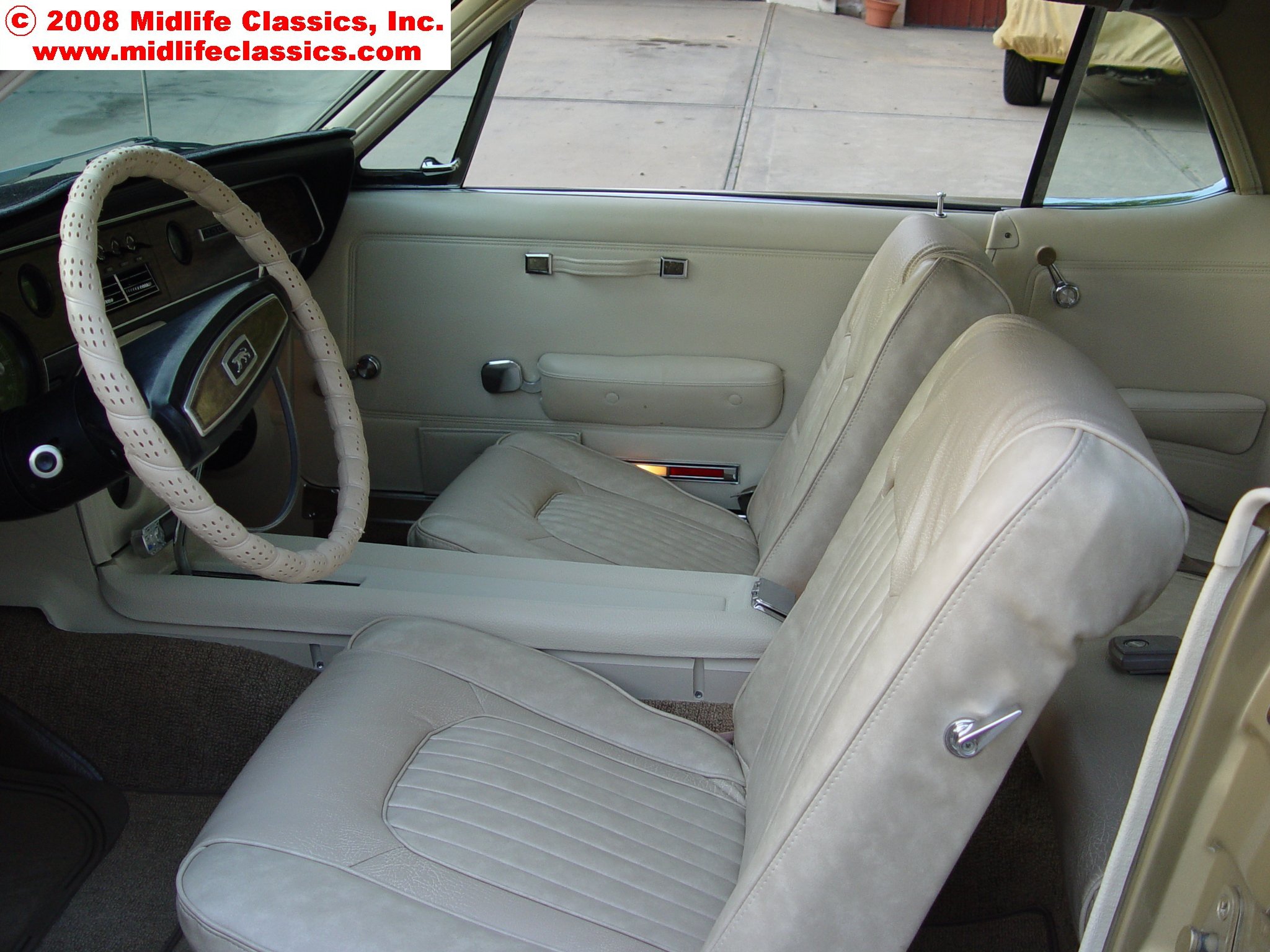

OK, as I stated in the home page of this site, both my first and second cars were Cougars (both XR-7s). When I started getting deep into the restoration habit, I decided it was time to relive the my past and get another one. This Cougar is identical to my first one except for color (it was Forest Green). After spending a year and a half tinkering with various mechanical issues (engine accessories, transmission, suspension and brakes mostly), I stripped it apart - inside and out - and sent it off for a fresh coat of paint. When it returned, I repaired and polished all trim before reinstalling. Then, I replaced all rubber gaskets and weatherstripping. Finally, I did a full restoration of the interior. In the process, I upgraded the stereo system, added power door locks and trunk release, and treated my bad back to an in-seat heater.

The result is a great car that looks and drives like new. I'm enjoying it as my always-reliable fall-back transportation when one of the more exotic cars is acting up, or when I just need something comfortable. It also makes a great car for multiple passengers. I have to say, that after having three Cougars, this one is by far the best. The best part is listening to music that I first heard as a teenager while cruising in my first Cougar and enjoying the wave of nostalgia.

SPECIFICATIONS

MANUFACTURER: Lincoln Mercury
MODEL YEAR: 1968
MODEL NAME: Cougar XR-7
MILEAGE: 114,029 (5/10/05)
REG EXPIRES: 6/05

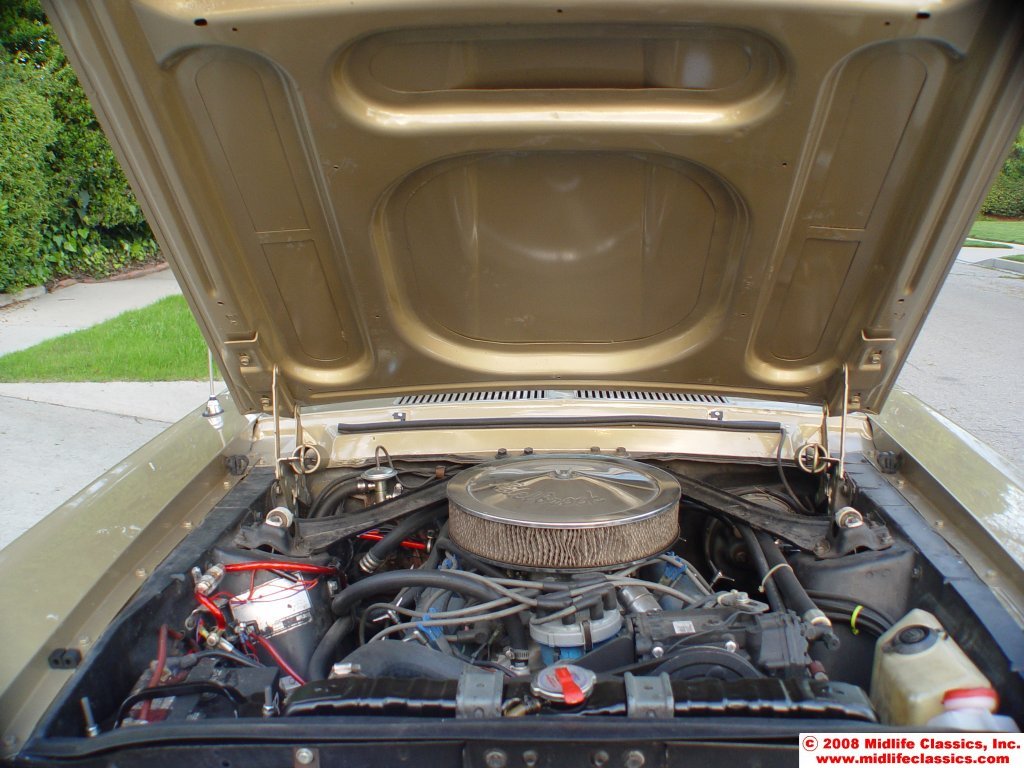

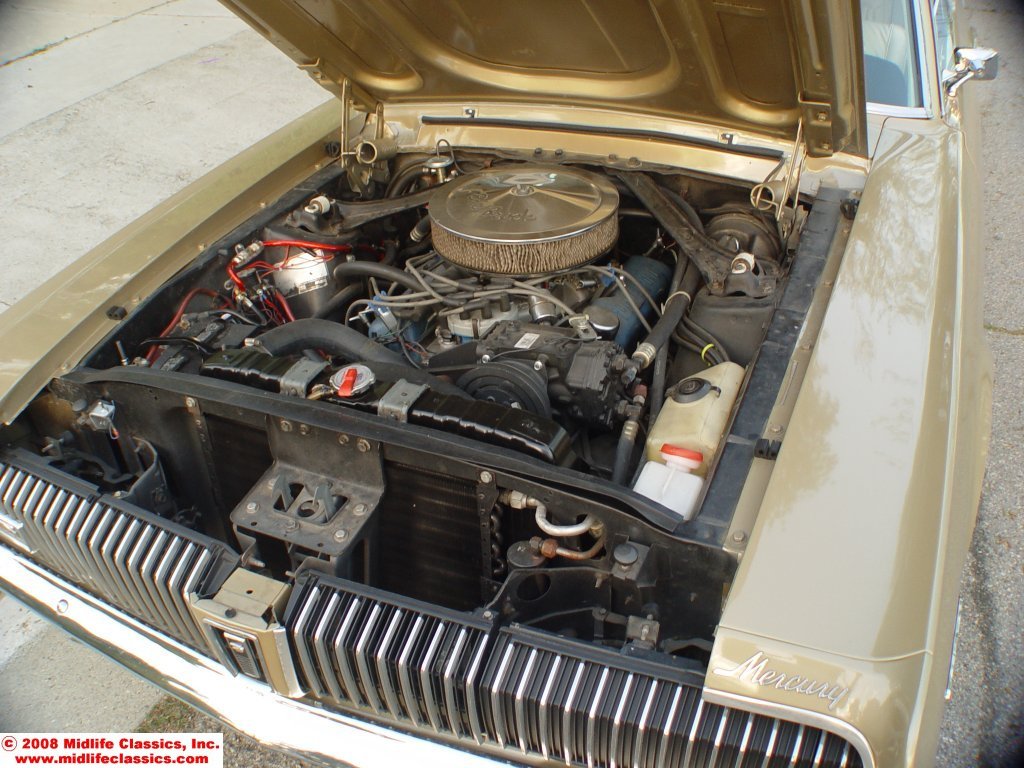

ENGINE & TRANSMISSION:

  • Model: Ford 302 V8
  • Serial #: xx
  • Type: V8, OHV Hydraulic Lifter
  • Horsepower: 250 (approx)
  • Overhauled/Rebuilt: @116,000 mi
  • Block Casting #: xx
  • Block Casting Date: 1979
  • Heads Casting #: xx
  • Heads Casting Date: 1969 (High Output)
  • Pistons: xx
  • Compression Ratio: xx
  • Camshaft: xx
  • Transmission: 3-Speed C4 Automatic
  • Features:
    • Holley 600 "Avenger" 4-Barrell
    • Edelbrock 289 Performer Intake Manifold
    • High Output Heads

CHASSIS:

  • Manufacture Date: 1968
  • Body Code: xx
  • Body Number: xx

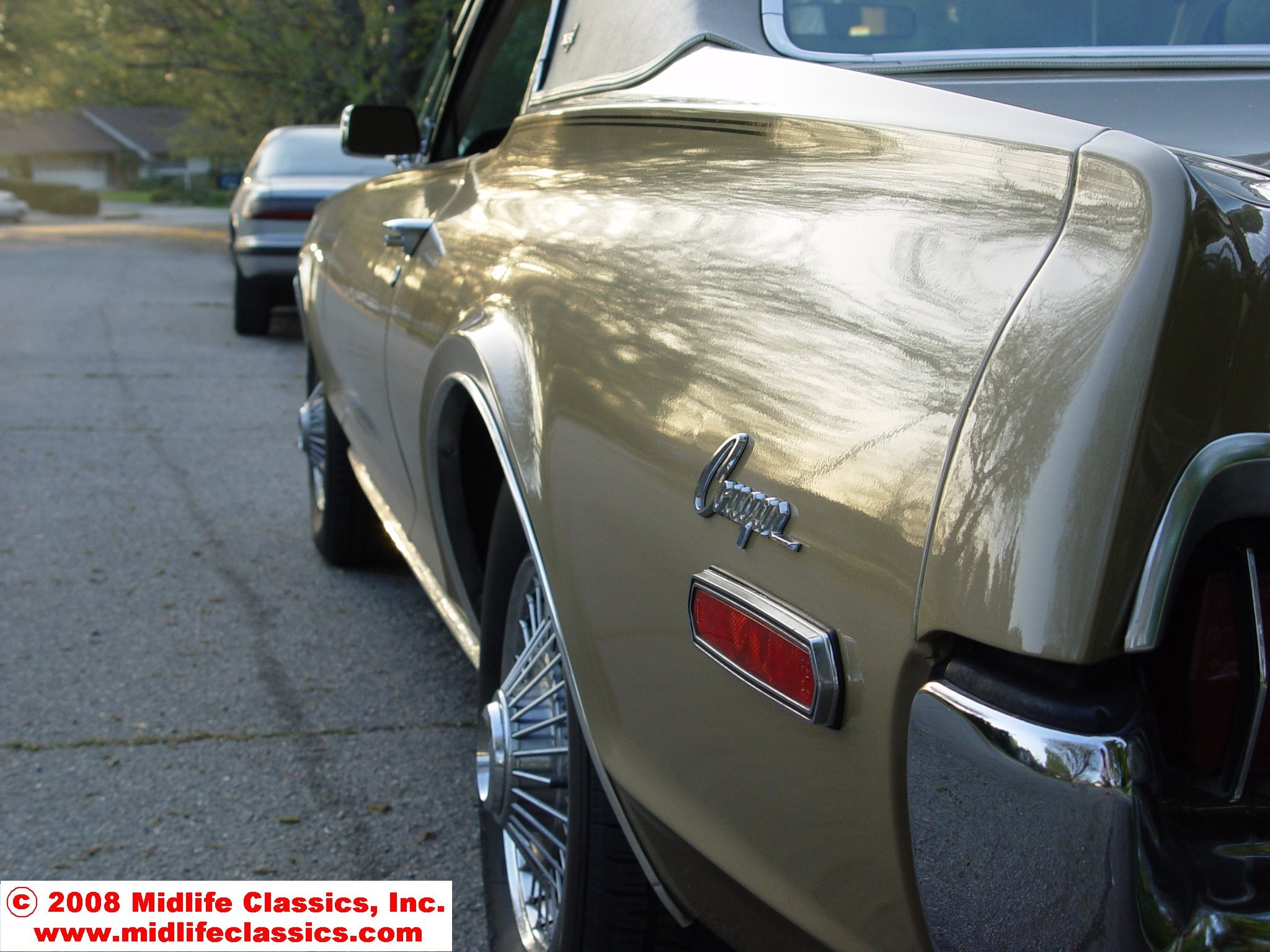

  • Paint Color: Grecian Gold
  • Top Color: White Vinyl (recently replaced)
  • Tires: 215/70R-14 BFG T/A Radials
  • Condition:
    • Body is Straight and Rust-Free
    • New Urethane Paint
  • Front Suspension: Fully Rebuilt Including Shocks & Springs (HD, lowered)
  • Rear Suspension: New Springs & Shocks
  • Brakes: Power Front Disc / Rear Drum

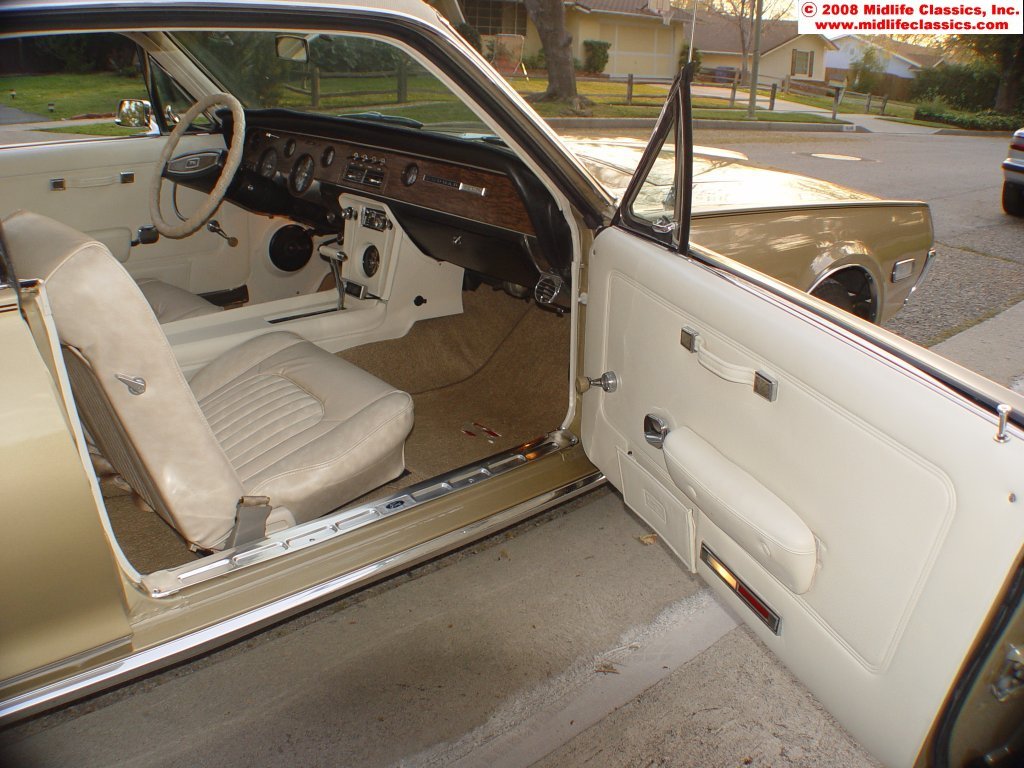

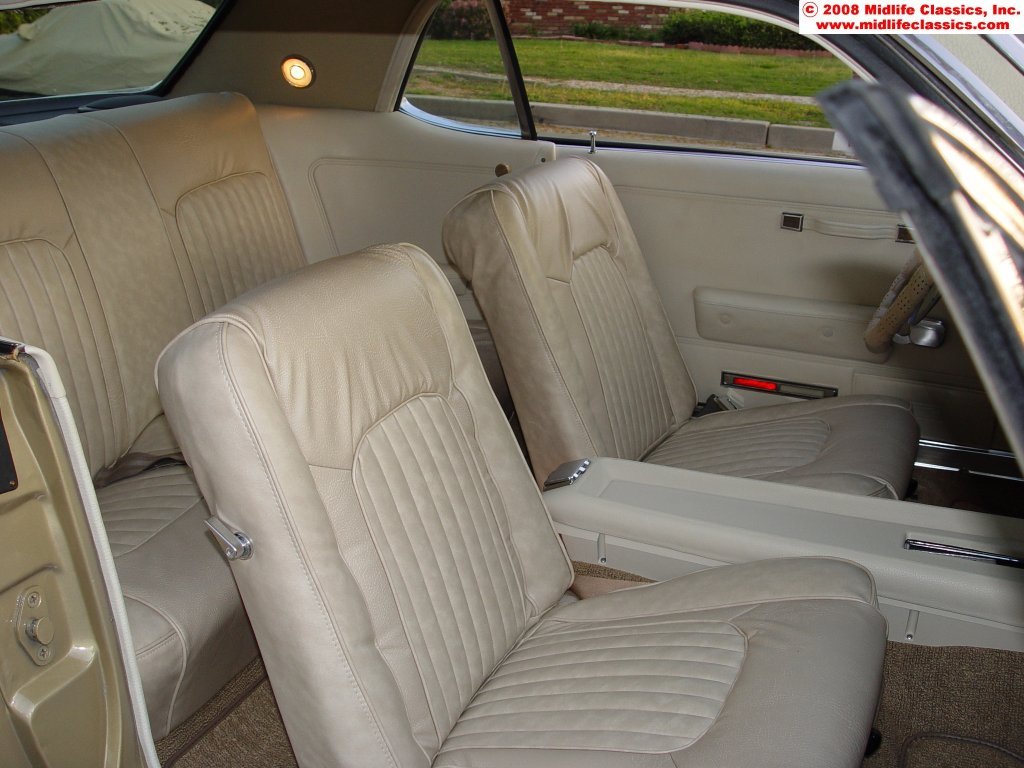

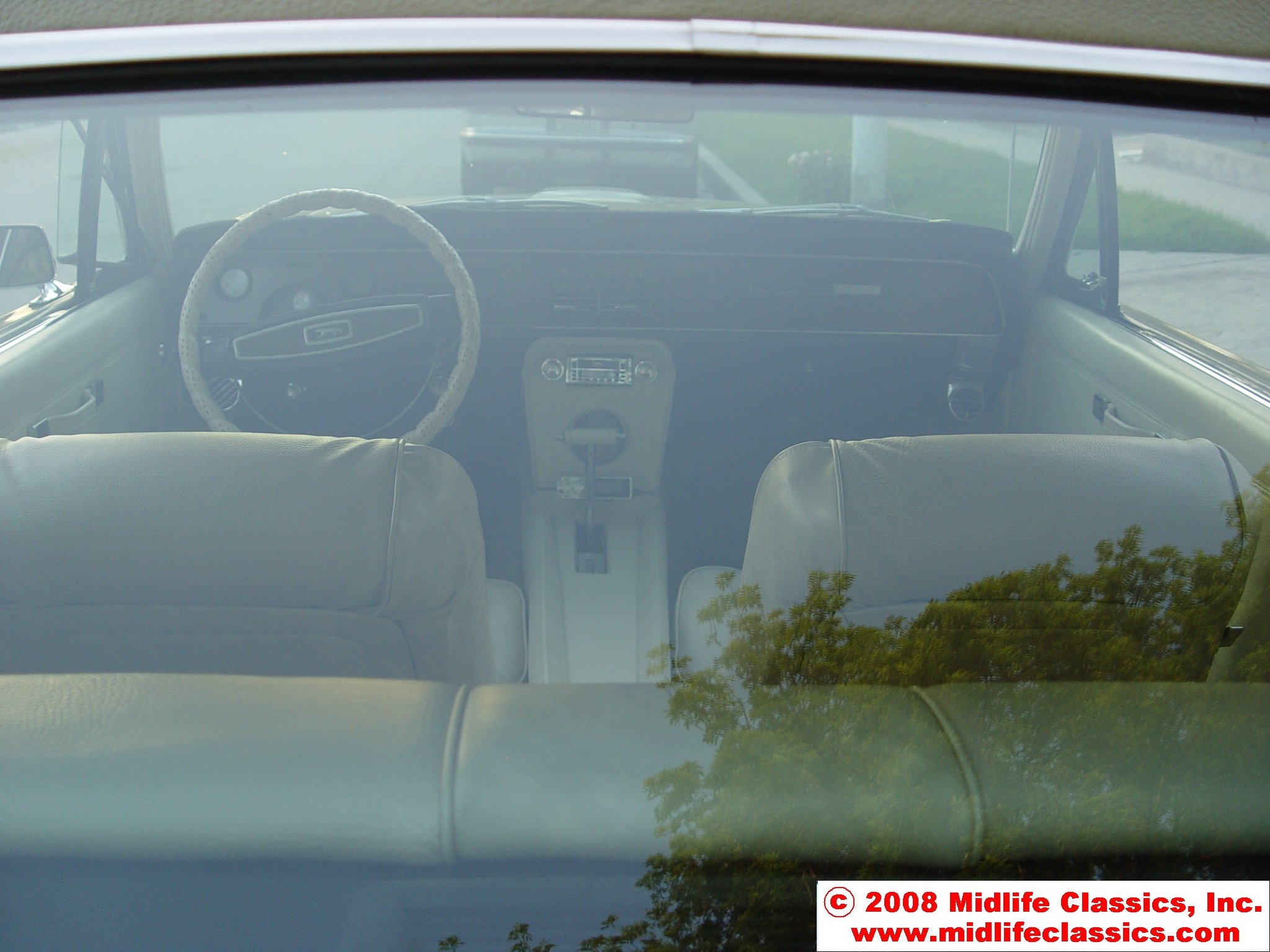

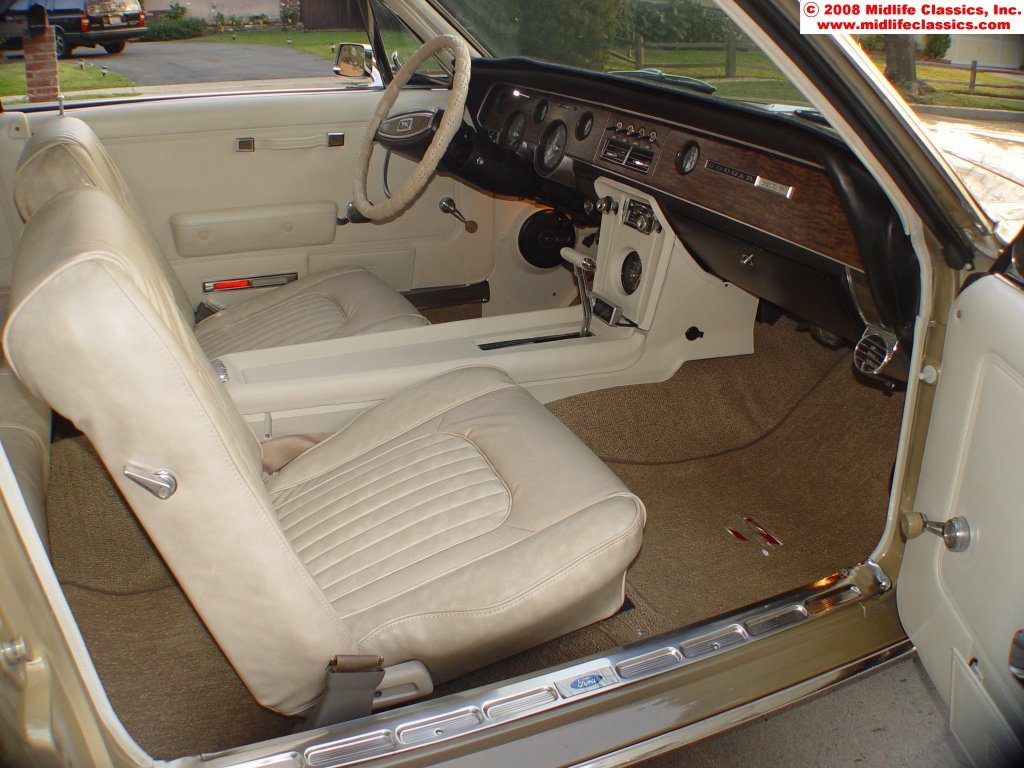

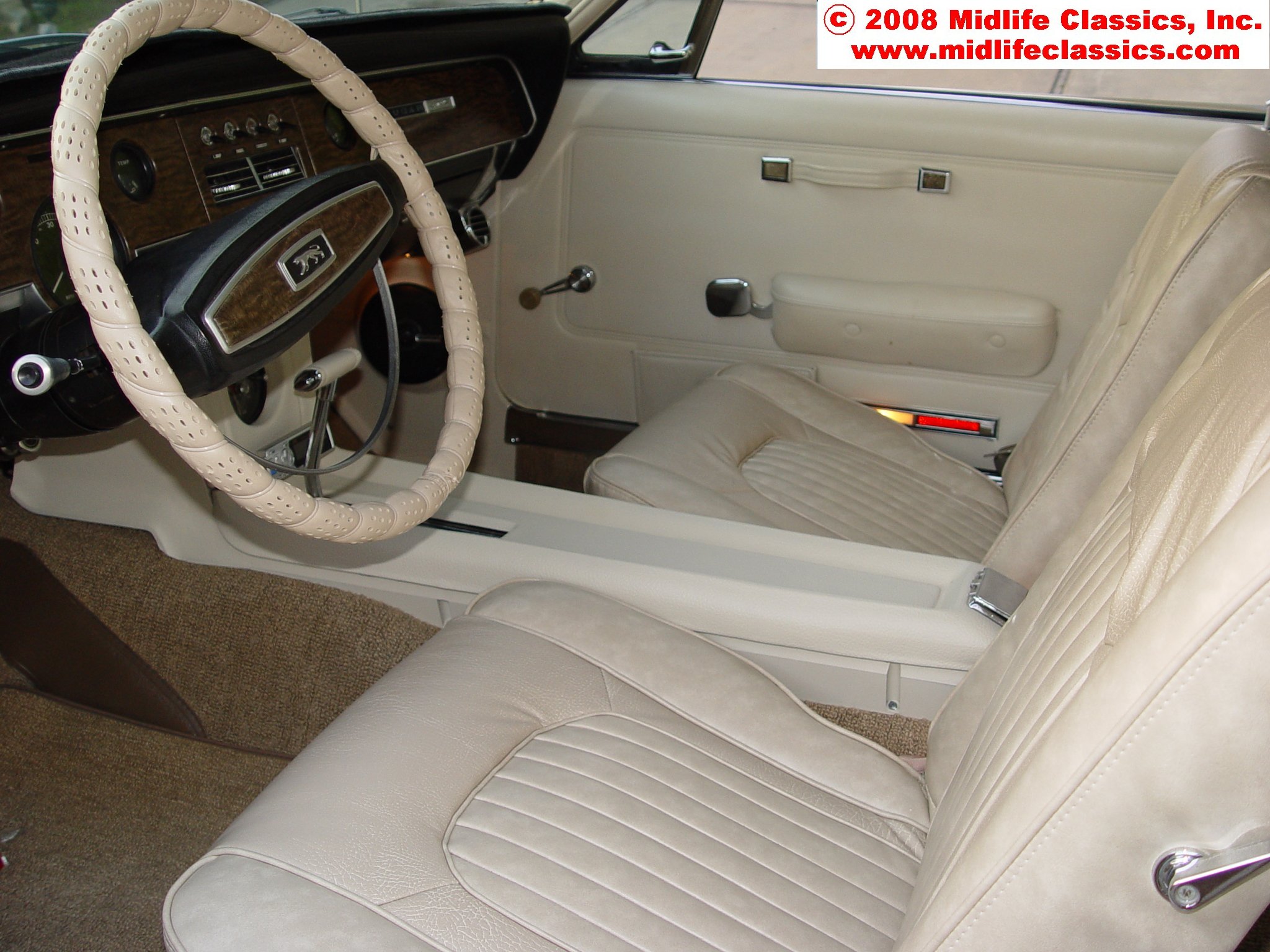

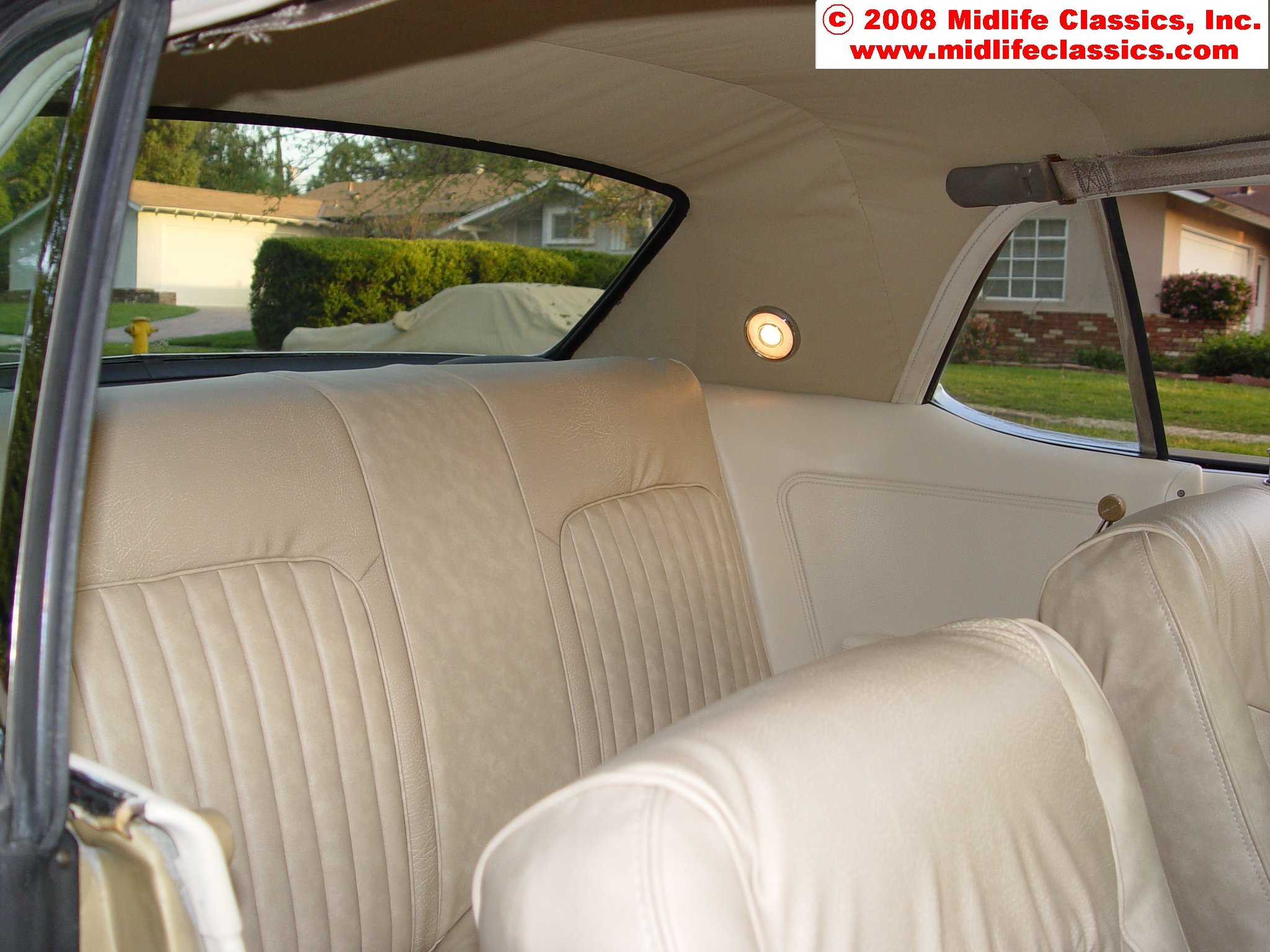

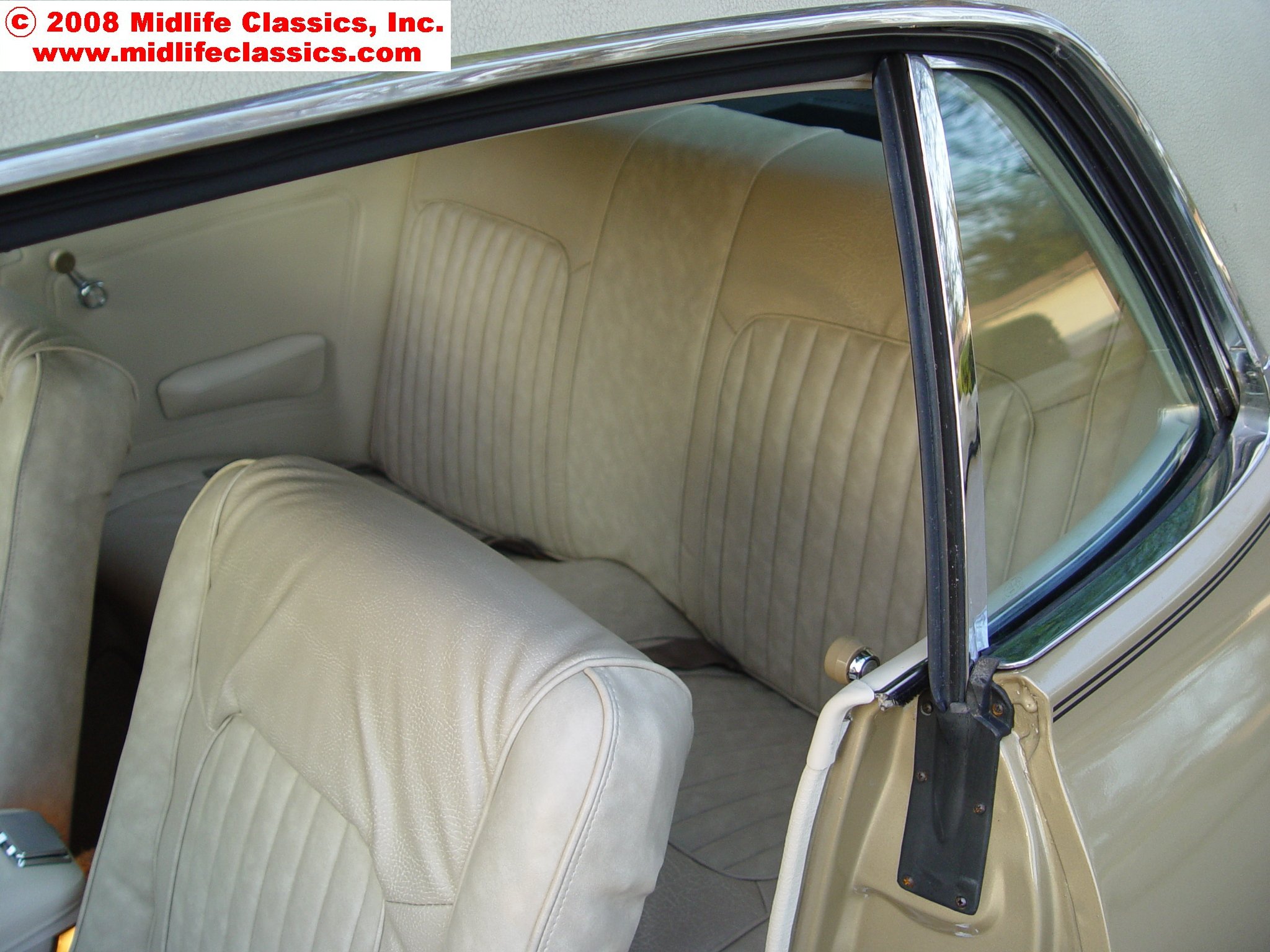

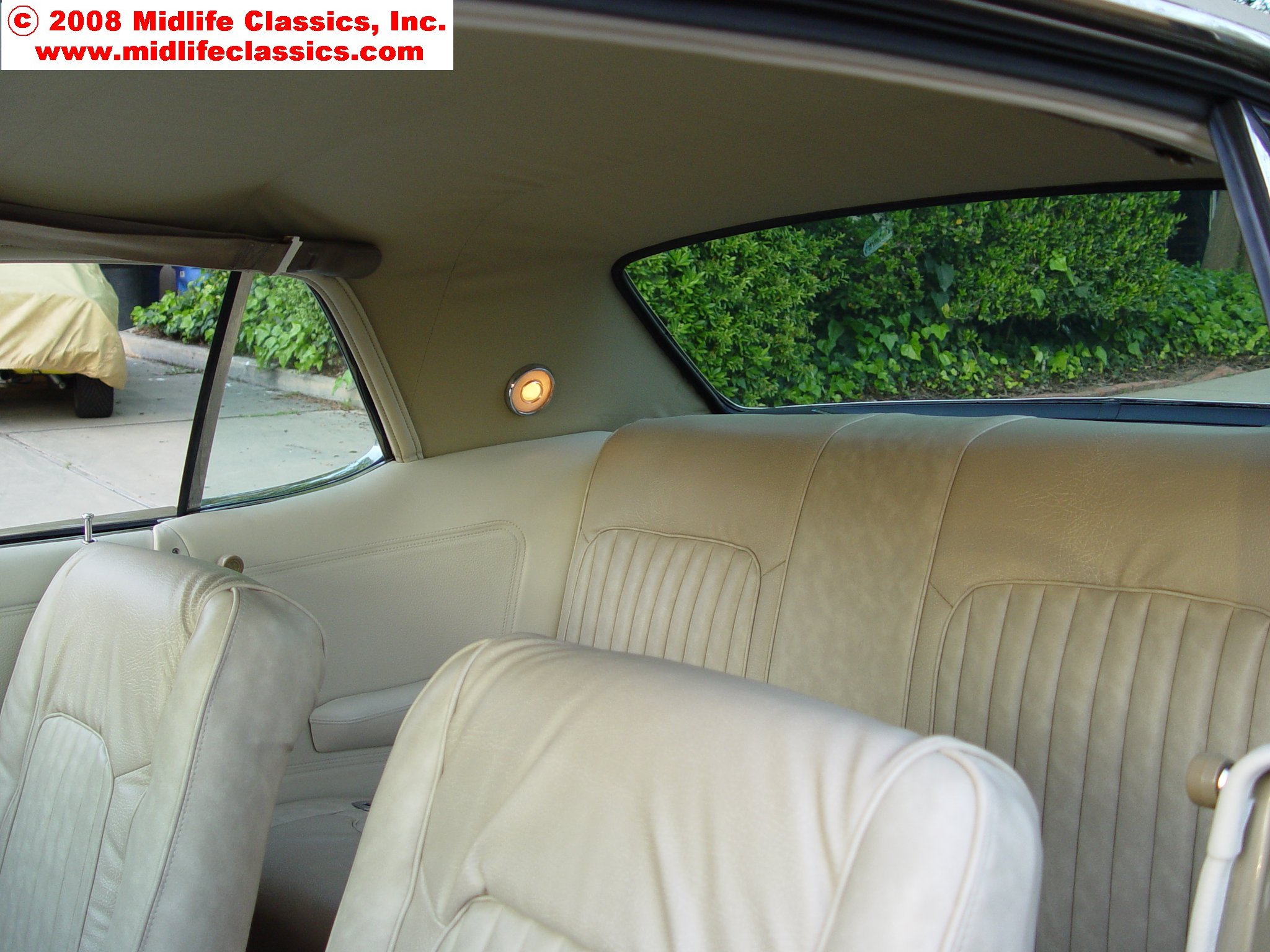

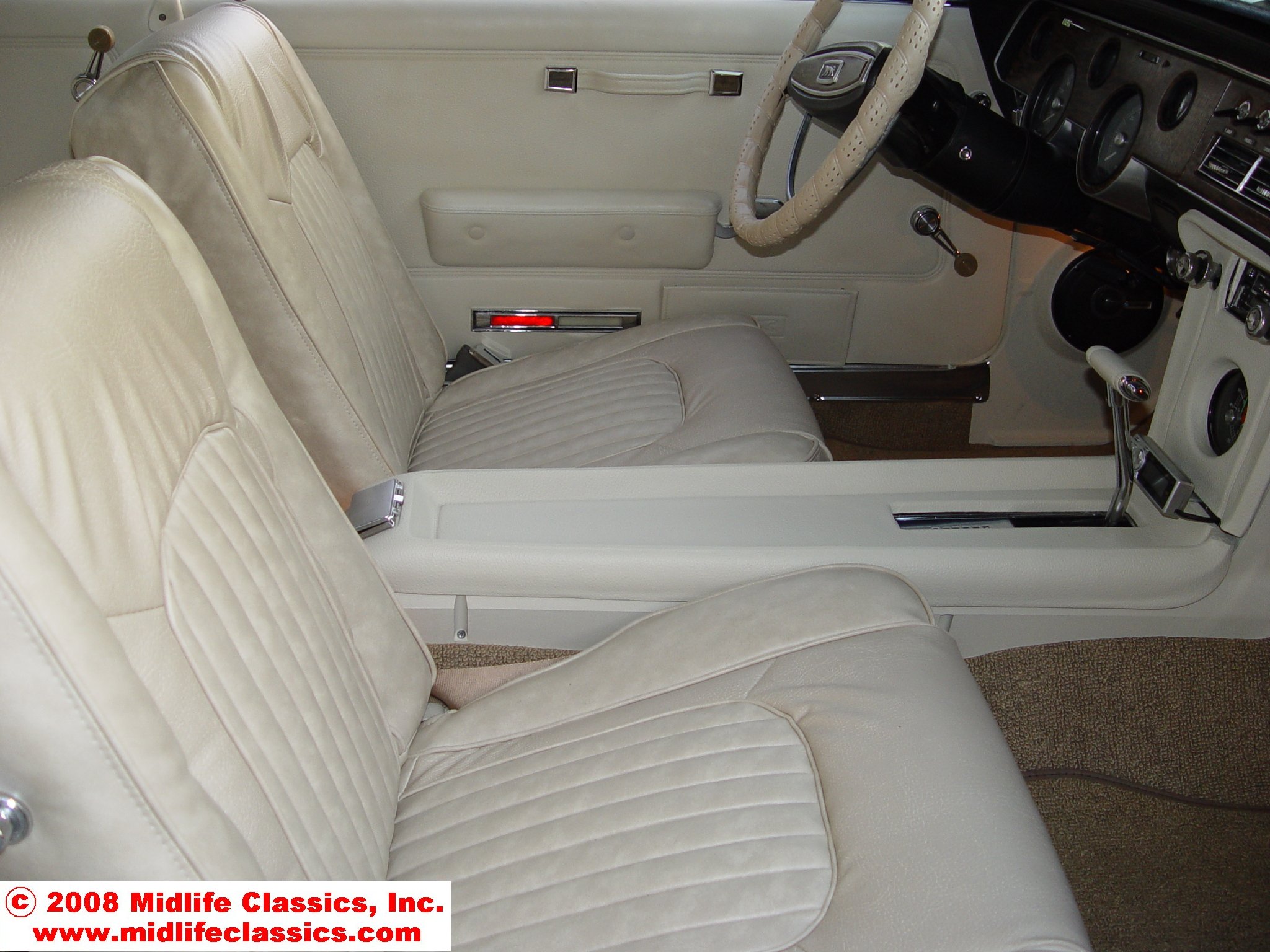

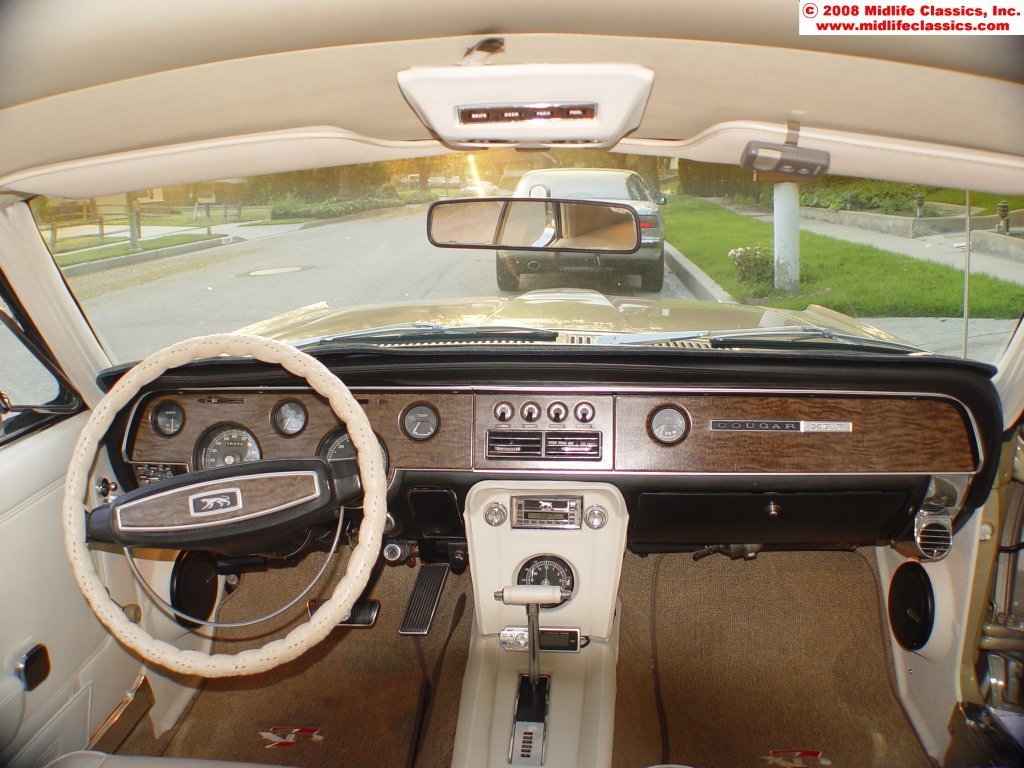

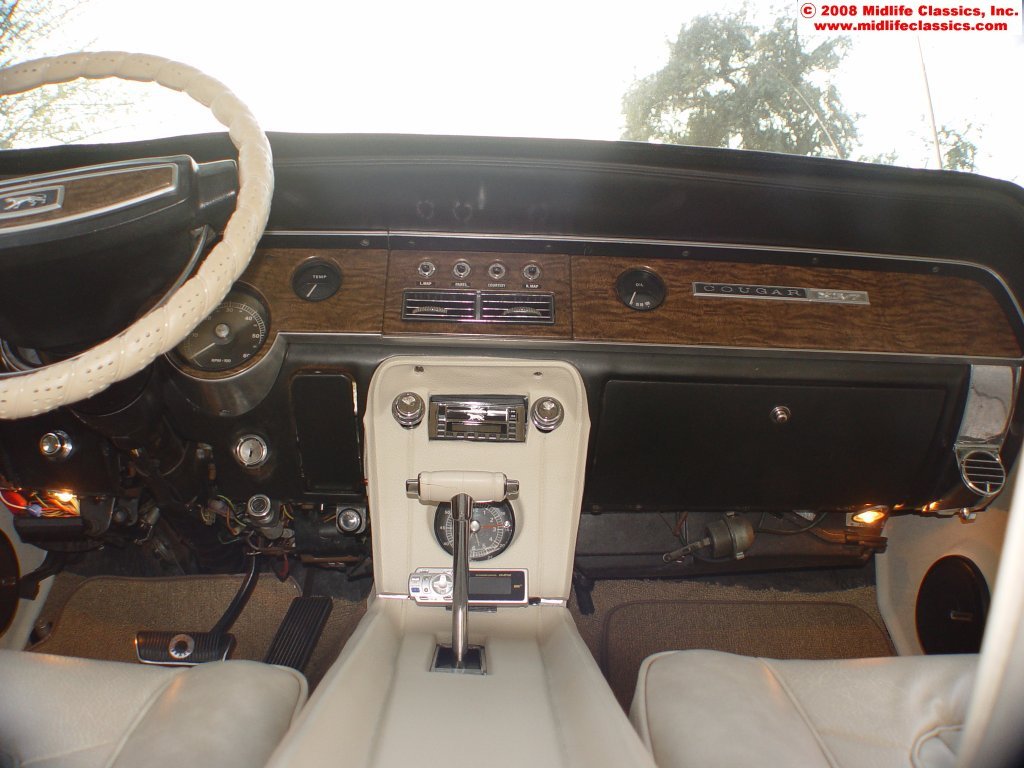

INTERIOR:

  • Option Code: XR-7/Deluxe
  • Color: Parchment
  • Material: Leather/Vinyl

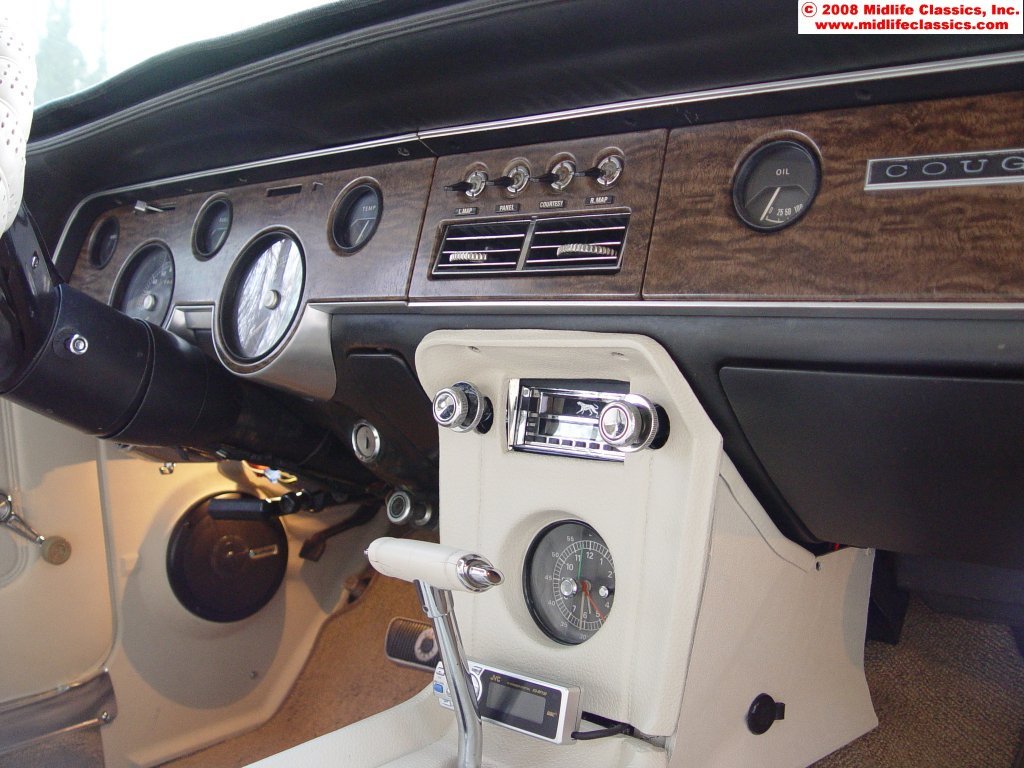

  • Features:

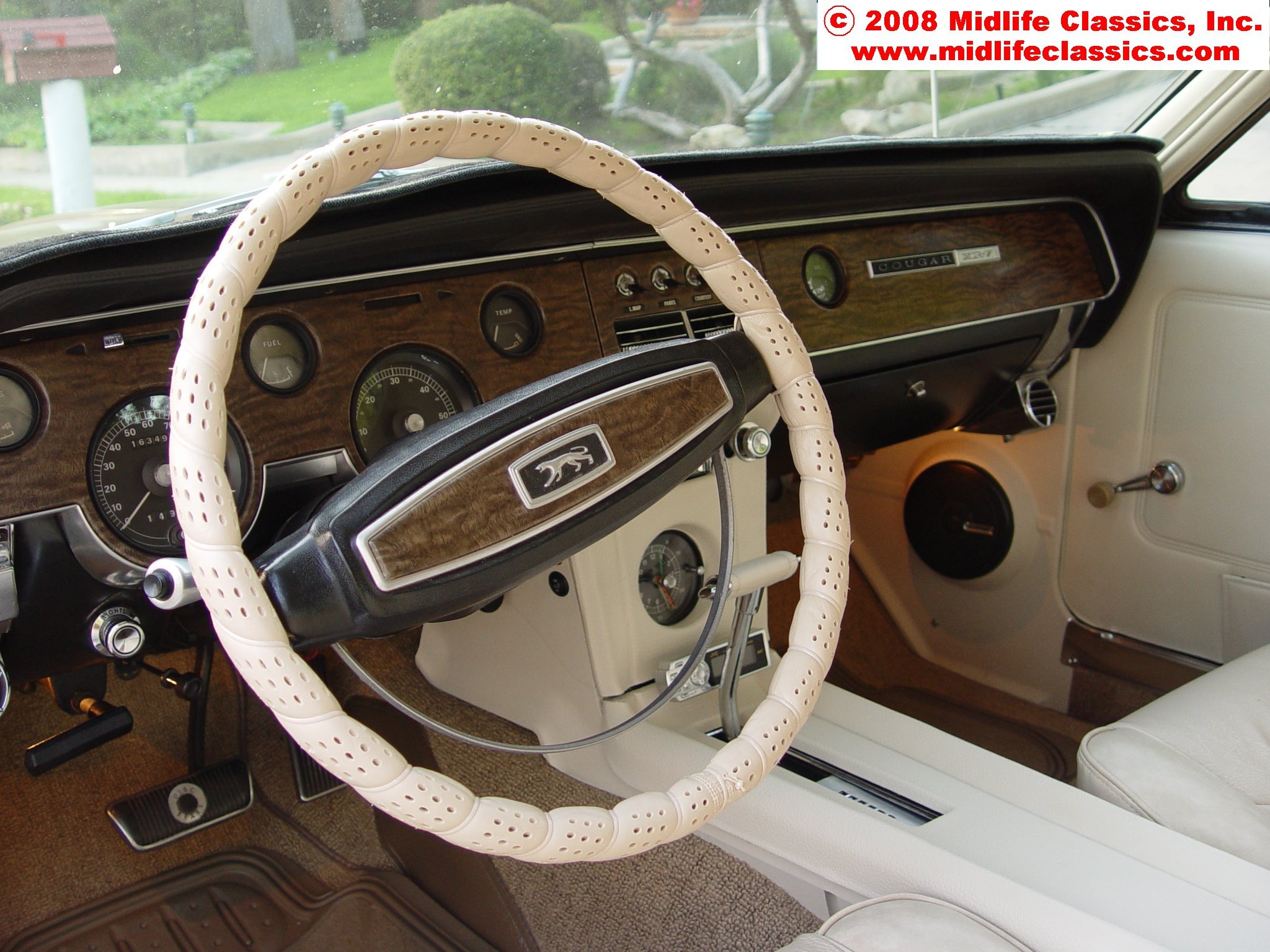

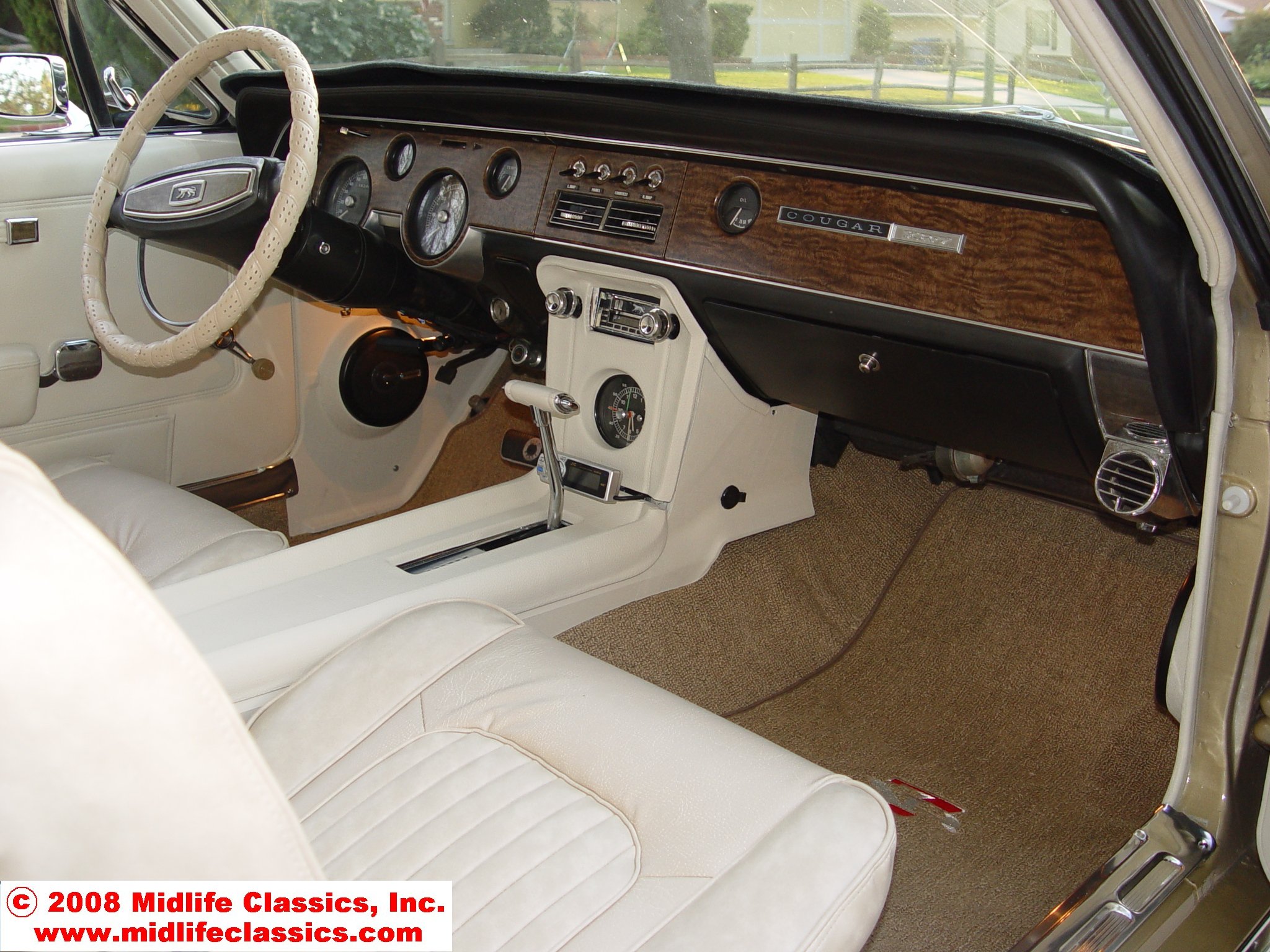

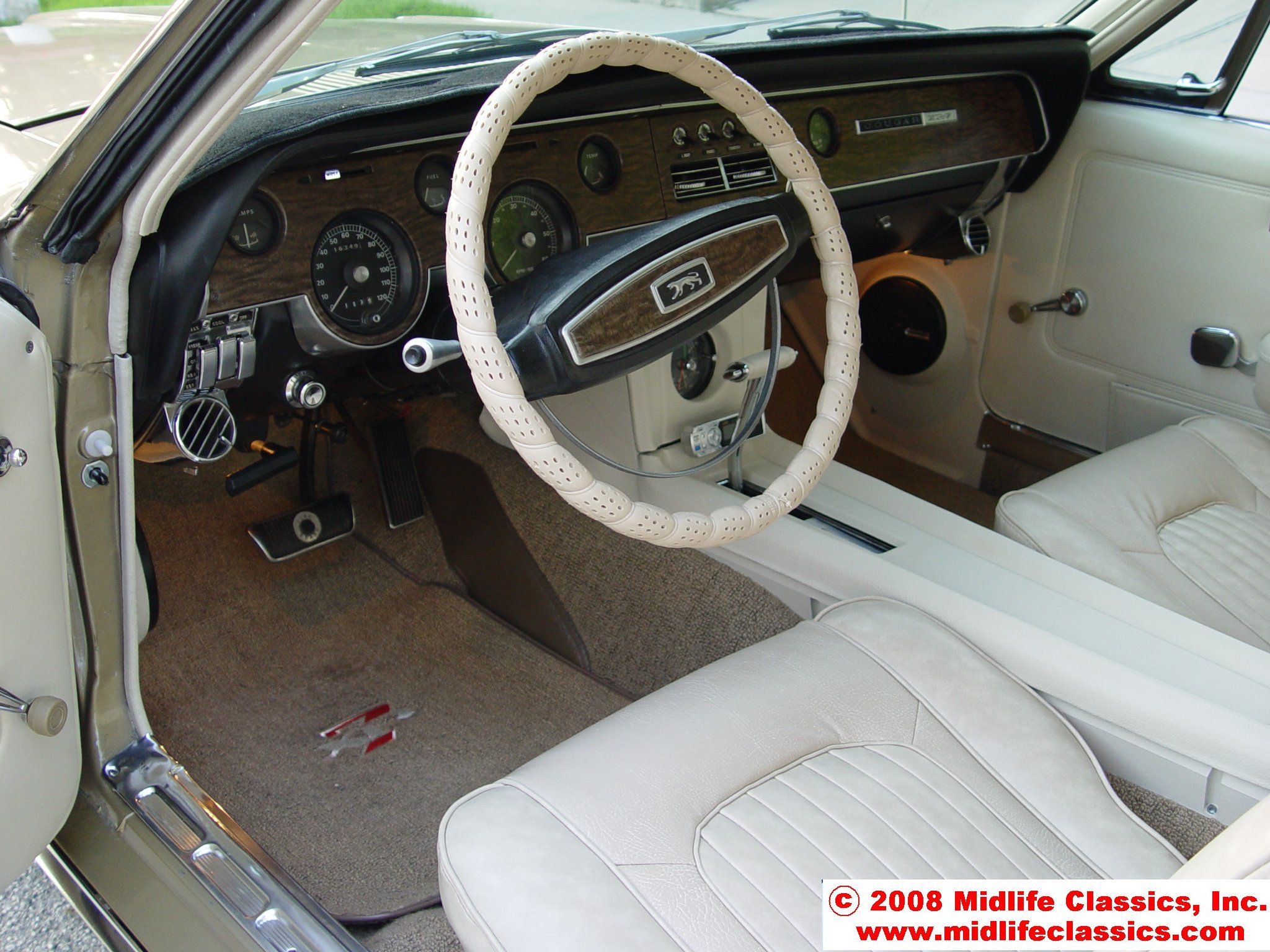

    • Woodgrain Dash
    • Tachometer, Ammeter, Clock, Coolant Temp & Oil Pressure Gauges

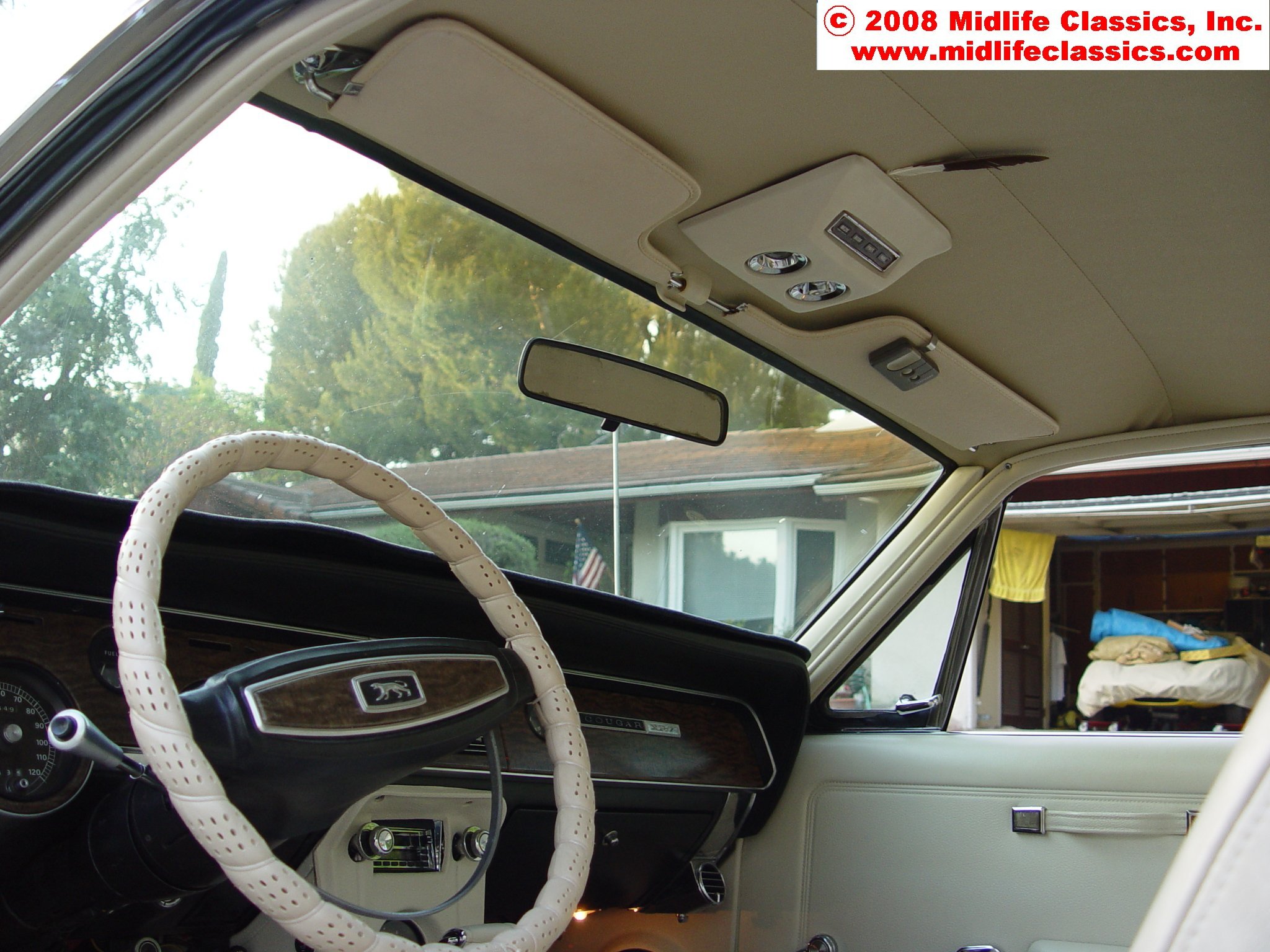

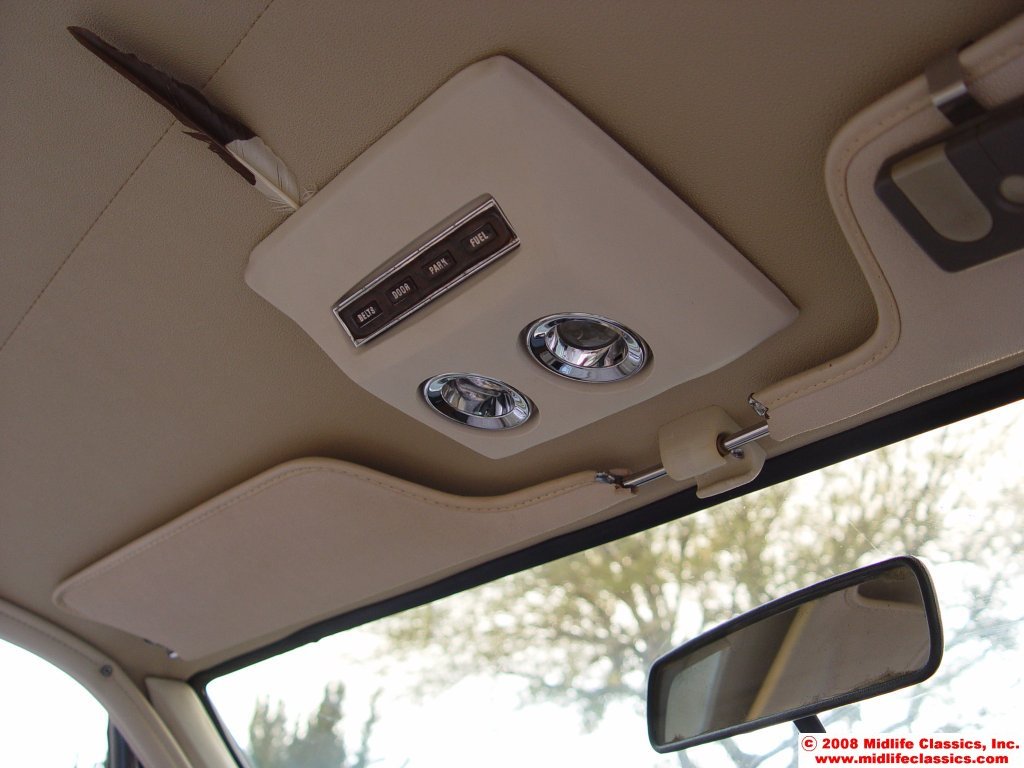

    • Overhead Console w/Courtesy & Warning Lights
    • Center Console

OPTIONAL FACTORY EQUIPMENT:

  • XR-7 Trim
  • Power Steering
  • Power Disc Brakes
  • Air Conditioning
  • Tinted Windows
  • Spoke Wire Wheel Covers
  • Trailer Hitch
  • Rear Window Defroster
  • Tilt-Away Steering Wheel
  • Cruise Control (missing throttle actuator)

OPTIONAL AFTERMARKET EQUIPMENT:

  • USA-2 AM/FM Cassette Stereo
  • 2 200W "Cruncher" Amplifiers
  • 12-Disk CD/MP3 Changer (RF)
  • Blaupunkt Speakers (front and rear)
  • Driver's Seat Heater (2 position)
  • Remote Electric Door Locks
  • Remote Electric Trunk Release
  • Custom XR-7 Logo Floormats
  • Accessory DC Outlet
  • Aluminum Edelbrock Intake Manifold
  • Holley 600 CFM 4-BBL "Avenger" Carburator
  • 14" Chrome Edelbrock Air Cleaner
  • Ford Electronic Ignition (from '79 LTD)
  • Dual Exhaust

WORK DONE SINCE PURCHASE:

  • Transmission Rebuild
  • New Dual Exhaust System
  • Urethane Paint Job (11/04)

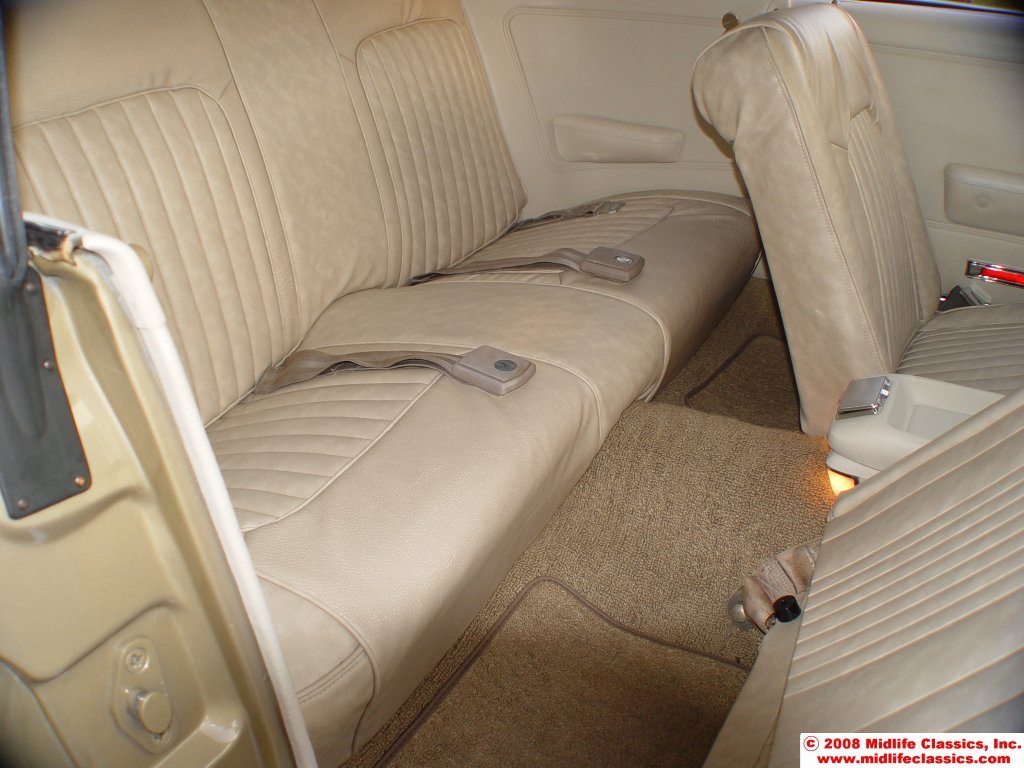

  • New Reproduction Interior Upholstery
  • New Headliner
  • New Carpet
  • New Carpet Underlayment
  • Refinished Sidepanels and Console
  • New Windshield and Backglass Gaskets
  • New Side Window Rubber and Felts
  • New Door Weatherstripping
  • New Mirrors (Inside and Out)
  • New Trunk Liner and Underlayment
  • Refinish Grill
  • Replace/Rebuild Entire Brake System
  • Replace Front Bumper (had small ding)
  • Install Hood Insulation
  • Replace Rocker Panels
  • Repair/Replace all Chrome/Stainless Trim
  • Install New AM/FM/Cassette CD/MP3 Changer Stereo System
  • Install Seat Heater
  • Install Power Door Locks
  • Install Electric Remote Trunk Release
  • Install Alarm w/Remote Keyless Entry
  • Install Accessory DC Outlet
  • New Front Springs (930# and 1" lower) and Spring Saddles
  • New Rear Springs and Urethane Bushings
  • New Front and Rear Shock Absorbers
  • Replaced Stock 2-Barrel Intake Manifold with Edelbrock "289 Performer"
  • Replaced Stock 2-Barrel Carburetor with Holley 600CFM 4-Barrel "Avenger"
  • Installed Edelbrock 14" Chrome Air Cleaner Assembly
  • Reinstall A/C (all engine compartment components were missing)
    • Rebuilt Compressor
    • New Condenser
    • New Drier
    • New Clutch
    • New Expansion Valve
    • New Custom-Made Hoses
    • New Mounting Brackets and Pulleys
    • Rebuild Heat/AC/Fan Control Assembly (was clogged)
    • Rebuild Temperature Control Vacuum Valve
    • Trace and Properly Route/Connect all Vacuum Lines (several were wrong)
  • Restore Original Front Engine Components (had single grooved-belt pulley
    configuration)
    • New Alternator
    • New Power Steering Pump
    • All Coolant Hoses and Thermostat
    • All Belts
  • Power Steering-Related Adjustments (was way out of whack)
  • Front Wheel Alignment
  • Installed Factory Optional Trailer Hitch
  • New 4-Row High-Capacity Radiator
  • Replaced Heater Control Valve
  • Replaced Aluminum Wheels w/Factory Steel and Spoke Wheel Covers
  • Refurbished Dash and Steering Wheel Pad and Emblems
  • Replaced Battery
  • Replaced Regulator
  • Install Proper Length Pushrods (was tapping)
  • Replace Ignition Wire Set
  • Install Chrome Wire Looms
  • New Antenna
  • New Radiator Cap
  • Installed Windshield Washer Bottle (was missing)
  • Replaced Windshield Washer Pump
  • Installed Coolant Recovery Tank

WORK REMAINING:

  • Locate & Install Missing Cruise Control Actuator
  • Replace Hood Hinge(s) (one is slightly sprung)

MAINTENANCE LOG:

  • Last Oil and Filter Change: 114,022
  • Last Coolant Flush and Change: 114,120
  • Last Transmission Fluid and Filter: 115,000
  • Last Air Filter Replacement: 111,000
  • Last Tire Rotation: 113,500
